Riot

The Riot has the most standard features and affordable pricing of any trailer in its class. But for those who want even more, a Riot can be custom-built with all the bells and whistles to accommodate your specific needs.

LEADING Features



Galvanized Structural Tube Frame w/ aluminum exterior



Aluminum Whiz proof plank floor w/ permanent suregrip rubber floor (self draining)



Vortex Rubber spray coated



Triple wall construction



HD windows and doors and extruded aluminum sides

Riot GN shown with optional features (hayrack, aluminum wheels, hydraulic jack, fold down step, full length extrusions)

Riot Bumper Pull

Trailer features

Indicates Optional Feature

DIMENSIONS

7' Tall – 7' 3" Wide

2H - 3000# Empty Weight
Tongue Weight 440#

3H - 3620 Empty Weight
Tongue Weight - 480#
Empty Weight - 2934#

4H - 4780# Empty Weight
Tongue Weight 640#

STRUCTURAL

Galva-Strong Galvanized Structural Tubing – Frame Rails, Floor Cross Members and Wall Uprights

Aluminum Structural Roof Bows

Aluminum Structural Roof Cove

Extra height (7'6", 8' tall..)

Width options (6'9", 8', 8'6")

Hayrack or Haypod

Living quarter packages available

WHEELS, TIRES & AXLES

Torsion Axles

Self-adjusting Brakes

Steel Wheels w/ Center Caps

4-Wheel Electric Brakes

E-Z Change Tire Jack

Radial Tires - 3H & 4H GN - 235/80/R16 - E Rated - 10 Ply

Radial Tires - 2H, 3H & 4H BP

Aluminum Wheels

Upgraded tires and wheels

Spread Axles

Optional Graphics

Exterior

Aluminum .050 Sheets Upper Wall Panel (Choice of Colors)

Smooth Aluminum Skin .050 Lower Wall Panel with Graphic (Choice of White, Silver, Charcoal, Black Metallic or Black) - Rampage Model

Aluminum Slats Lower Wall Panel (.100 Heavy Extruded Mill Finished) Stall Area Only - Riot Model

One-Piece Aluminum Roof Skin

Front Wrap of Nose in Same Color as Top Side Panels

Vortex Rubber Coating under Goose Neck Deck, under Fenders and in Stalls

Extruded Aluminum Running Boards And Fenders

Treadbrite Gravel Guard around Front Wrap on BP models
‍
Rear Rubber Bumper

Exterior Tie Ring – One Each Side Per Stall

E-Z Key System – One Key Fits Every Lock

Full length exterior aluminum extrusions

Tailside drop down windows ilo standard

Air slats ilo standard

Windows in rear stall doors

Aluminum Skin Colors

Black

Black Metallic

Matte Black

Charcoal

Silver

Slate Grey

Tan

White

ELECTRICAL

L.E.D. Light in Stall Area with Exterior Remote Switch

Dome Light in Tack Room

L.E.D. Marker And Tail Lights

Exterior L.E.D. Flood Light (4) on GN models – Center of Each Wall, Over Rear Gate and Under GN Deck

Hydraulic jack

Battery package

Extra lights

A/C

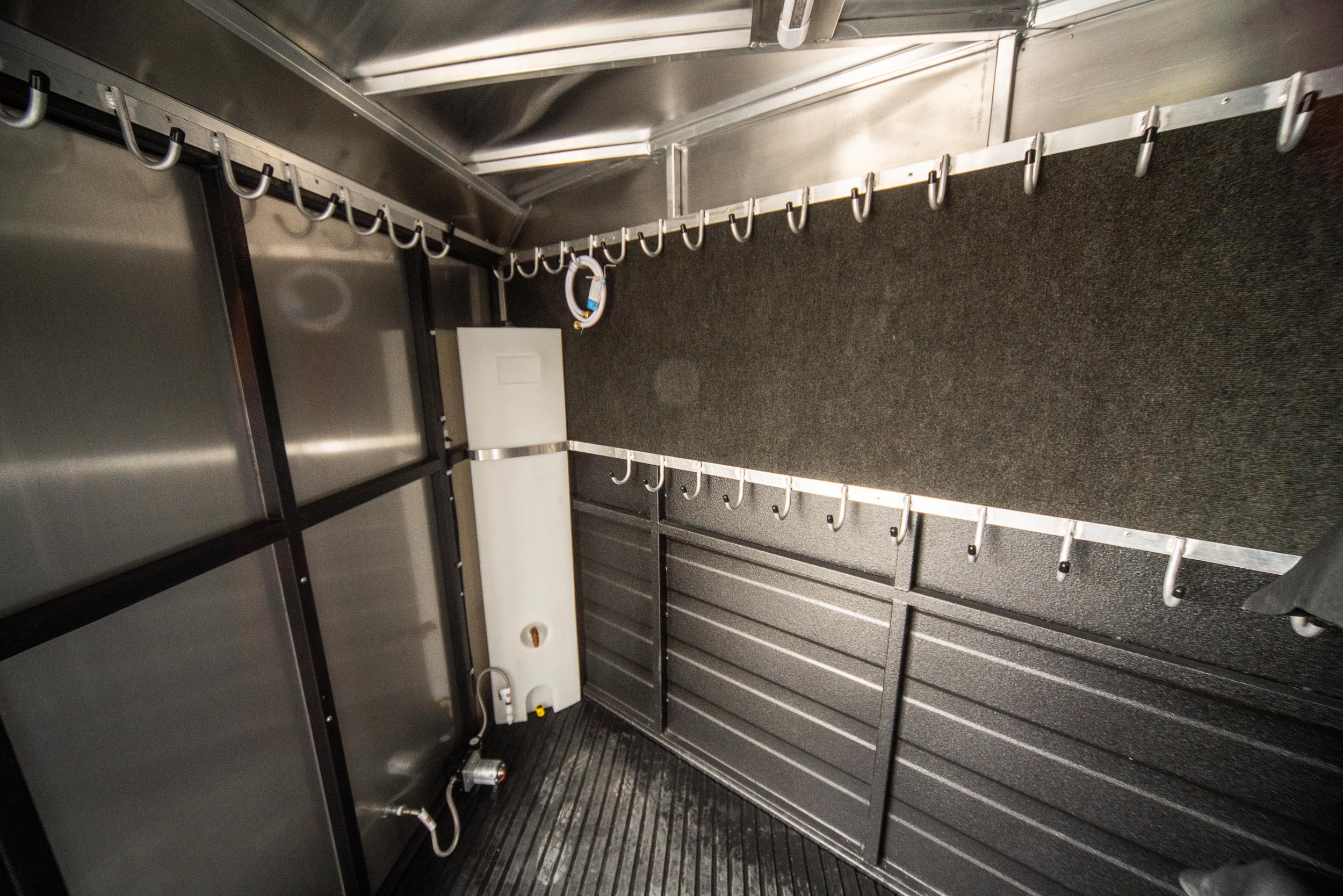

Tack/Dressing Room

38" Wide Tack Door Opening on GN Models

33" Wide HD Tack Door Opening on BP Models

28" Shortwall in Tack Room of GN

Carpet On Floor

Swing-Out Saddle Rack

Blanket Bar (4) Place (Standard on Tack Room Door)

Brush Tray on Door

(12) Bridle Hooks

Carpet on Top Half of Bulkhead Wall Behind Bridles

Aluminum Clothes Rod

Added footage to the front dress/tack area

Corner water tank

Boot box

Extra bridle hooks, blanket bars and saddle racks

Optional tack room packages (Sidetack, midtack, pietack, collapsable rear tacks, full rear tacks etc.)

Panel & insulate tack ceiling and or walls

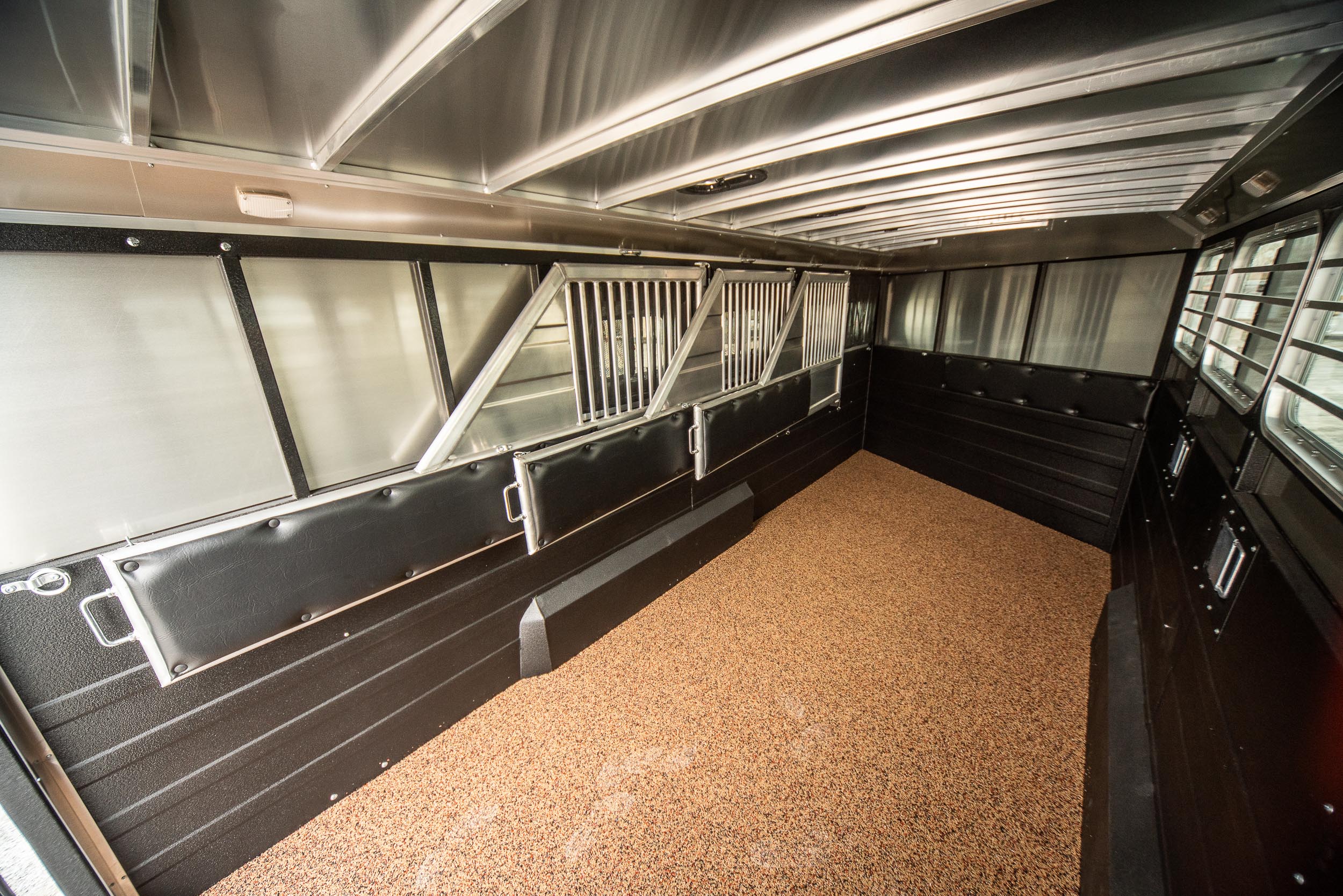

Stall Area

SureGrip Permanent Rubber Floor

Whiz Proof Slatted Aluminum Floor (VORTEX Rubber Coating)

48" High Corrugated Triple-Wall Construction with Vortex Rubber Coating

Drop-Down Feed Doors with Jail Bars - Head Side Per Stall

Removable Mesh Face Screens on Jail Bars - Head Side Per Stall

HD Drop-Down Feed Doors on Head Side Per Stall (26" Tall x 35.5" Wide) with Window Nets and Grills

20" x 37" Tail Side Stall Windows with Screens

40" Centers Padded Dividers Placement - 4' Offset

Butt Strap in Rear Door Opening

Double Rear Doors - Windows Optional

Hock Deflector Pad

Head Deflector Pad

Pop-up Vent Each Stall

Jailbar dividers
‍
Stud dividers

1st stall escape door

Feed mangers
‍
Panel and insulate stall wall and or ceiling

Rubber floor mats ilo standard suregrip

Wood floor ilo standard aluminum whizproof floor

Warranty

8-Year Structural
‍
2-Year Hitch-to-Bumper

Limited Lifetime Structural Corrosion Warranty for Galva-Strong Frame
