Ultimate Sports hauler 360 Gallery

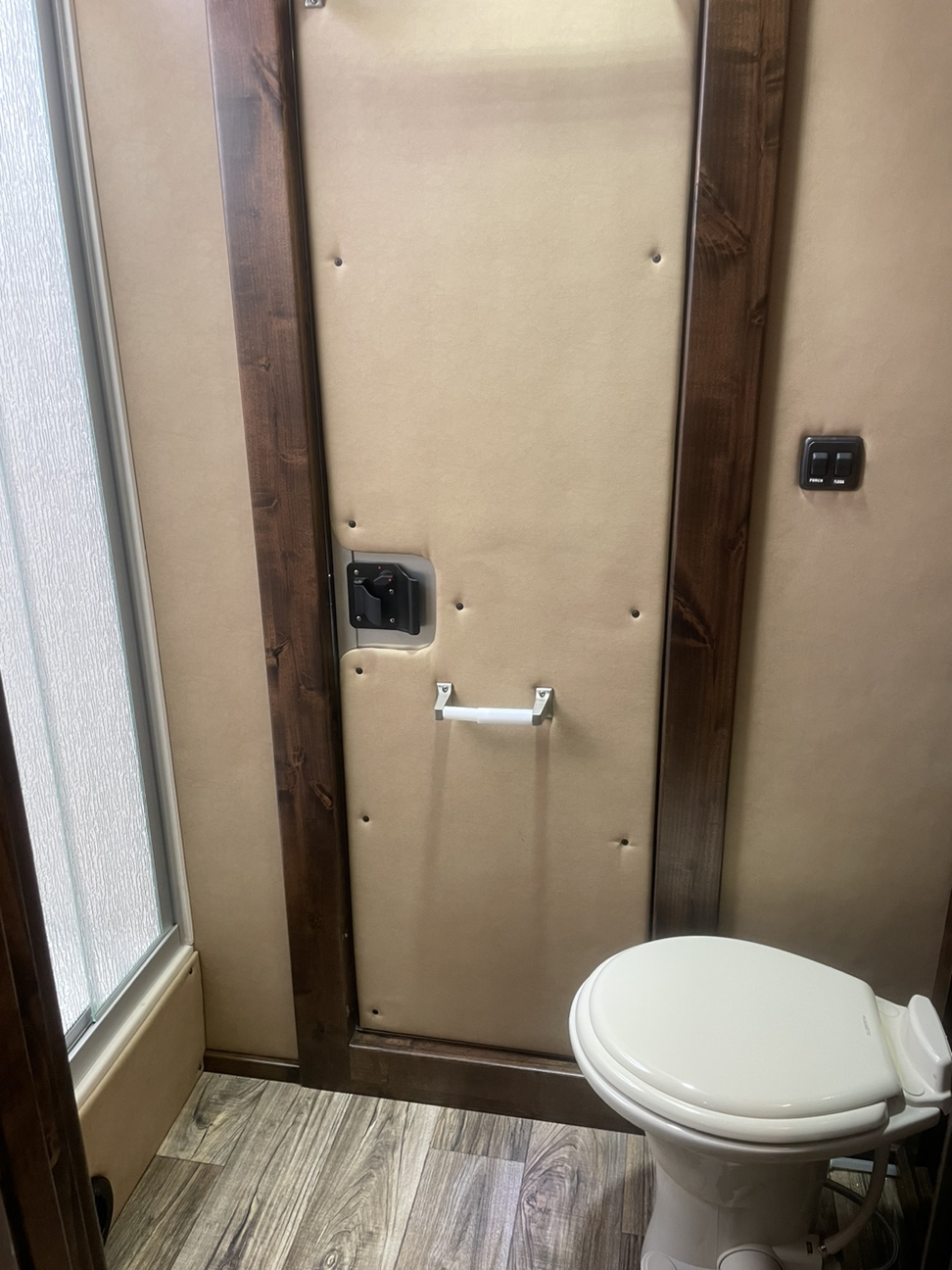

Ultimate Sports Hauler Interior
FloorPlans
Ultimate Sports Hauler Floorplans
10 X 10 U.S.H.
11 X 11 U.S.H.
12 X 12 U.S.H.
13 X 13 U.S.H.

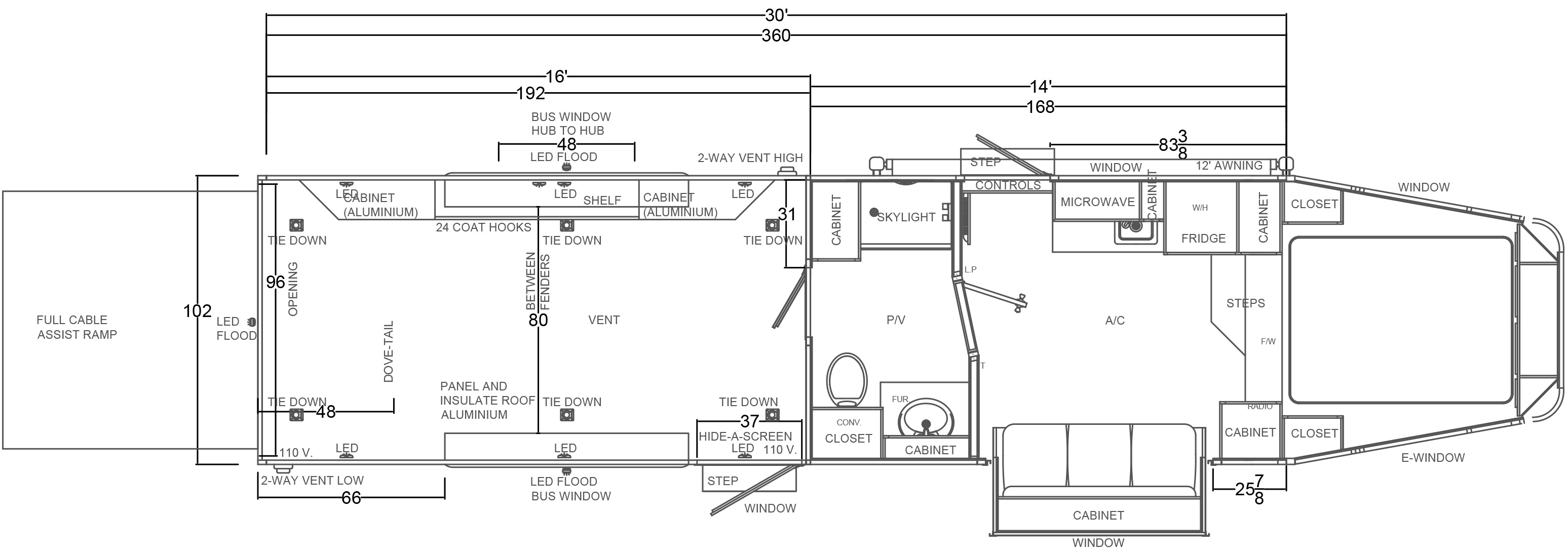

14 X 14 U.S.H.
Garage Sizes
Trailer features
Indicates Optional Feature
STRUCTURAL
102” Outside Width /80” Between Fender Wheels

88” Interior Height

Galvanized Structural Tubing in Walls and Floor

.050 Aluminum Exerior Wall Skins

One-Piece .040 Aluminum Skin Roof with Aluminum Cove and Roof Bows on 24” Centers

Wall Posts and Floor Crossmembers on 16” Centers

6’ Tapered Gooseneck Nose

1 1/2” Tail Light with Aluminum Mill Finish

8-Year Structural Warranty and 2-Year Hitch-to-Bumper Warranty
WHEELS, TIRES & AXLES
8,000 lb Dexter Torsion Axles 22˚ Down

235/80/R16 14 Ply Radial Tires with Spare

48” Spread Axles

22 Degree Down Axles

Aluminum Wheels with Center Cap


Exterior
Aluminum .050 Side Sheets (Attached with 3M VHB Bonding System)

Vortex Rubber Coating under Gooseneck

Stainless Front Skin

37” HD Mandoor with Window Curbside of Cargo Area

1½ Taillights Brackets with Mill Finished Covering
Additional Length - Per Ft.

Delete Length - Per Ft.

12” High Treadbrite Full Length Of Trailer Side Walls (Choice Of Black Or Mill Color) - Per Ft. Of Trailer

2 - Windows In Gn

16” X 24” Hd Fuel Door

48” X 48” Hd Escape Door Over Drivers Side Fender

Aluminum Wheels (Choice Of Black Or Mill Color)

Front Gn Enclosure W/ Treadbrite Flip Up Doors

Roll Up Front Gn Enclosure

Extra 37” Hd Mandoor W/ Window

30# Propane Tanks

12V Fuel Cell W/ 30 Gallon Fuel Tank

Aluminum Fold Over Ramp Extension W/ Ramp Bump Ons
ELECTRICAL
4 - Flood Lights (1 Over Rear Ramp, 1 Each Side, 1 Under Goose Neck)

1 - Porch Light over Mandoor

6 - Interior L.E.D. Dome Lights

2 - 110 v Plugs in Garage Area

L.E.D. Marker Lights

Dual L.E.D. Tail Lights

Single Leg Hydraulic Jack


40,000 Btu Forced Air Furnace In Cargo Area

75,000 BTU Hot Dawg Propane / 110V Heater

8000 Btu Catalytic Wall Mounted Heater - Ea.

Air Conditioner In Cargo Area ( Includes Second Converter)

Air Conditioner In Cargo Area (Includes 50 Amp Service)

Pre-Wire For A/C

Duct Heat And/Or A/C Into Cargo Area - (Price For Each)

Electric Awning - Per Ft.

Alpine Deck / Amp With Sub Woofer And Speakers

12 Volt Plug W/ Usb Ports - Ea.

110V Plug - Ea.

Converter W/ Shore Line (Separate Converter In Cargo Area)

2000 Watt Power Inverter

6000 Watt Power Inverter

Interior L.e.d. Dome Lights - Ea.

Extra Flood / Load Lights - Ea.

Extra L.e.d. Marker Lights - Ea.

Two Way 12 Volt Power Vent

28” 12 Volt Tv

Wire Coax Cable From Tv To External Plug For Satellite
GARAGE AREA
Lined and Insulated Walls and Ceiling w/ White Aluminum

Rear Ramp w/ Cable Assist (81" Interior Door Load Height)

4' Dove Tail

14" x 14" Crank up Roof Vent

Mandoor in Bulkhead Wall

2 - Picture Windows

8 - 6000# Recessed Tie Downs

12 Coats Hooks

1 - Aluminum Cabinet Mounted on Bulkhead Wall

12" Vortex Kick Plate Full Length of Interior Walls

2 - Aluminum Flow - Thru Vents in Side Walls


Full Width Boot Box Across Bulkhead Wall ilo of mandoor in bulkhead

Aluminum Lined Walls And Ceiling I.l.o. White Lauan - Per Ft. Of Trailer

Heated Boot Box W/ Boot Dryer (Must Add Furnace Option)

Picture Window

12 - Coat Hooks

Dual 33” Aluminum Cabinets W/ 6’ Shelf

33” Aluminum Locking Helmet Cabinet - Ea.

3’ Aluminum Shelf

6’ Aluminum Shelf

44” Fold Down Bench

Aluminum Floor W/ Vortex Spray Lined Floor - Per Ft. Of Cargo Area

Rubber Vortex Spray Lined Floor - Per Ft. Of Cargo Area

8 - #6000 Recessed Tie Down

Aluminum Versa Track - Per Ft.

E-Track - Per Ft.

Insulated Floor W/ Recessed Track Heating & Vortex Spray Lining - Per Ft. Of Trailer Box Length

Heated Aluminum Waredrobe Locker For Helmets, Jackets And Gloves (Must Add Furnace Option)

Aluminum Waredrobe Locker For Helmets, Jackets And Gloves

18”X36” Aluminum Fold Down Table / Work Bench

Center Point Hoist In Ceiling

6 - Tier Wall Mounted Boot / Glove Rack - Ea.

Aluminum Wall Mounted 36” Storage Utility Tray

Aluminum Wall Mounted Tray For Two 5 Gallon Fuel Jugs

Aluminum Tie Down / Strap Rack Hanger

Caliber Low Pro Grip Glides (Includes 4 Rows Across) - Per Ft.

Caliber Trax Grabber (Includes 2 Rows Across) - Per Ft.

3/4” Rubber Floor Mats In Cargo Area - Per Ft Of Cargo Area

Drop Down Cot

Fold Down Jack Knife Lounge

22 Degree Down Axles (Raises Trailer Approx. 3”)

45 Degree Down Axles Includes Drive Over Fenders (Raises Trailer Approx. 6”)
Warranty
8-Year Structural

2-Year Hitch-to-Bumper

Limited Lifetime Structural Warranty on Galva-Strong Frame
Styles
Natural Package
FORMICA
‍(Jeweled Coral)
SOFT WALL
(Avery Saddle)
Floor
(Vintage Oak Vinyl)
CARPET
(Windswilt)
SADDLE PACKAGE
FORMICA
‍(Jeweled Coral)
SOFT WALL
(Addison Sand)
FLOOR
(Vintage Oak Vinyl)
CARPET
(Windswilt)
GLAZED PACKAGE
FORMICA
‍(Jeweled Coral)
SOFT WALL
(Addison Chamois)
FLOOR
(Vintage Oak Vinyl)
CARPET
(Roxton)
WALNUT PACKAGE
FORMICA
‍(Jeweled Coral)
SOFT WALL
(Addison Chamois)
FLOOR
(Vintage Oak)
CARPET
(Roxton)
EBONY PACKAGE
FORMICA
‍(M)
SOFT WALL
(Addison Sand)
FLOOR
(Deep Creek Timber Umber Vinyl)
CARPET
(Roxton)
WEATHERED PACKAGE
FORMICA
(Bordeaux Japanana)
SOFT WALL
(Addison Sand)
FLOOR
Romano (vinyl)
CARPET
(Roxton)
