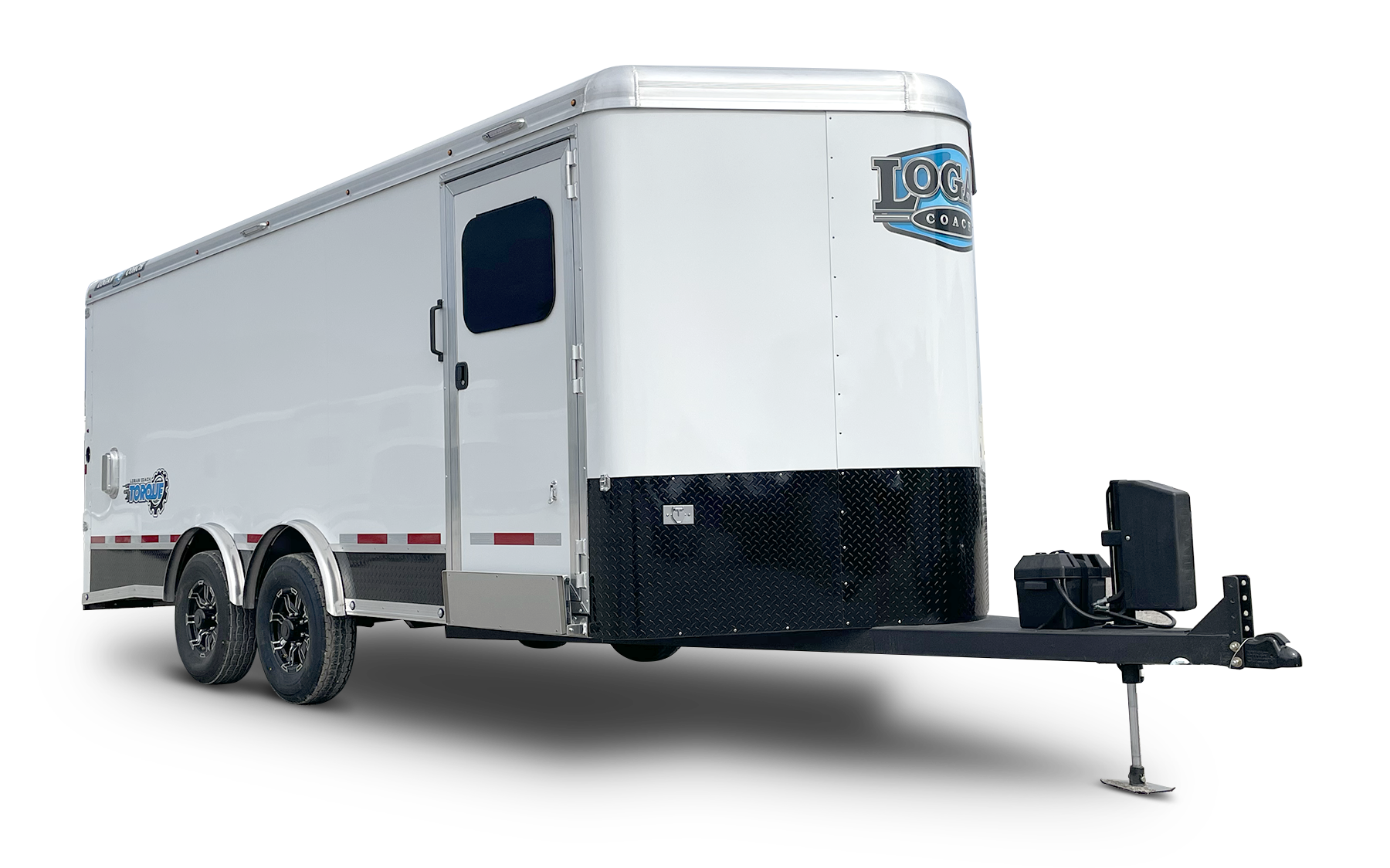

Torque High End Motor Sports Trailer

Torque

High end motor sports trailer

You Bring the Horse Power. We’ve Got the Trailer. The Torque trailer was designed and built to cover the needs for all motor sports enthusiasts. Whether its for your side by side, ATV, dirt bike, road bike....etc we have got you covered with the Torque model motor sports trailer! It comes with all the features needed to get you to and from your latest adventure in comfort and style, while keeping you and your toys secure and safe.

LEADING Features



Galvanized Structural Tube Frame w/ Aluminum Exterior



0.50 Aluminum Exterior Bonded w/ 3M Technology



Vortex Rubber Spray Coated



8 Year Structural Warranty and 2 Year Hitch to Bumper



Available In A Variety of Sizes and Colors

Trailer features

Indicates Optional Feature

Optional Features

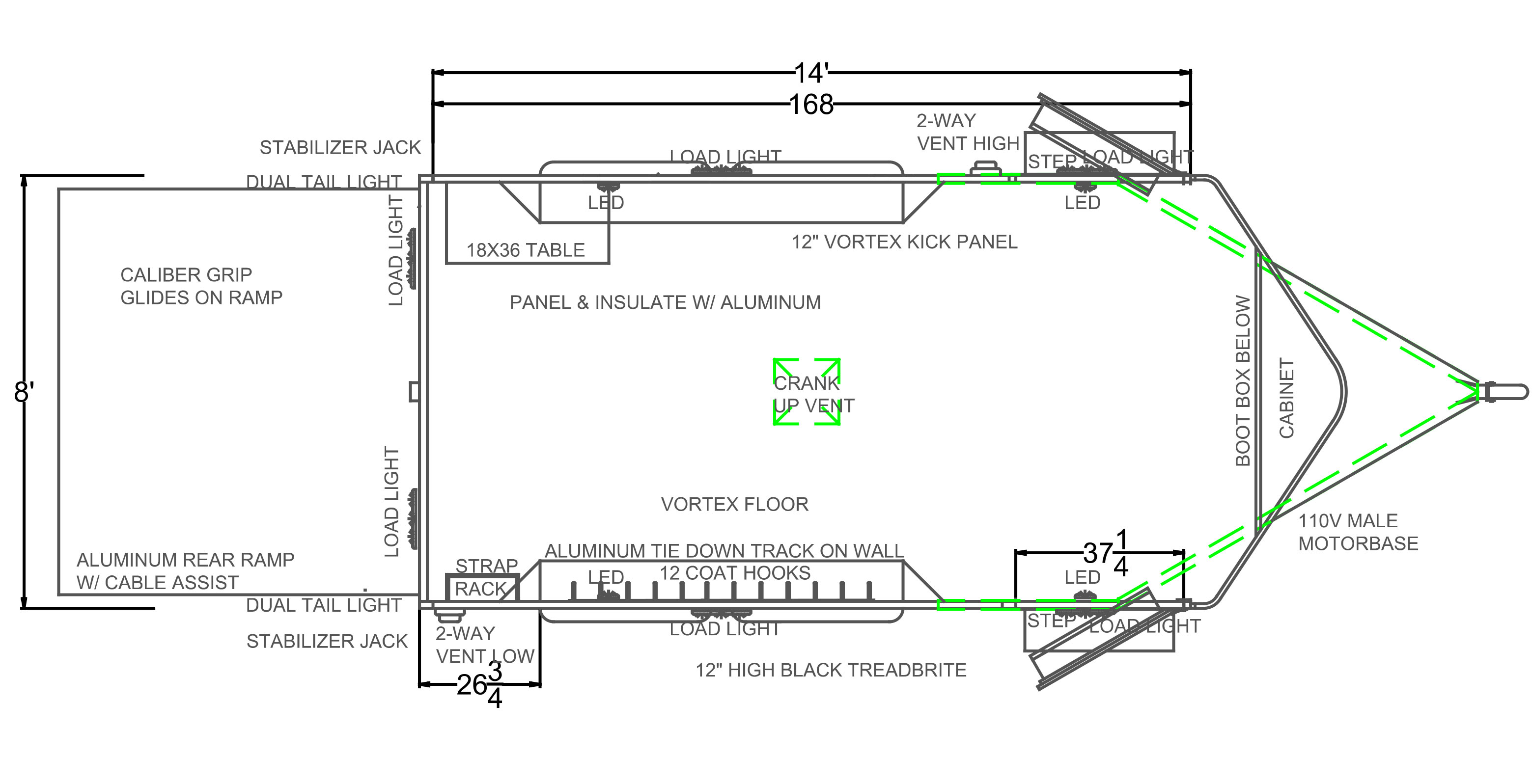

DIMENSIONS

Available in 14', 16', 18' & 20' Bumper Models

96” Outside Width / 93” Interior Width

88” Interior Door Width Opening

STRUCTURAL

8' wide,96” Outside Width / 93” Interior Width

7' tall, 81” Interior Height

Galvanized Structural Tubing In Walls / Floor

Dual Mandoors w/ storage trays

.040 Aluminum One Piece Roof Skin W/ Aluminum Cove And Roof Bows On 24” Centers

Wall Posts On 24” Centers / Floor Crossmembers On 16” Centers

4’ Dove Tail

42” Spread Axles

Rear stabilizer jacks on rear exterior corners

Aluminum rear ramp, w/ vortex spray lined. Cable assist (81” Interior Door Load Height) w/ caliber glides

WHEELS, TIRES & AXLES

14'-#3500 16', 18', 20'-6,000# Dexter Torsion Axles

22.5 degree down Dexter Torsion Axles

14'-15" , 16', 18', 20'-16" Radial Tires with Spare

Aluminum wheels

Exterior

Aluminum .050 Side Sheets Attached W/ 3M VHB Bonding System

Aluminum treadbrite on front nose and lower side panels

Vortex Rubber Coating on BP Tongue

Aluminum Skin Colors

Black

Black Metallic

Matte Black

Charcoal Metallic

Dark Grey

Silver Metallic

Tan

White

Two tone skins optional

ELECTRICAL

Three Load Lights Controlled by Outside Light Switch

Dome Lights with Remote Switch in Garage Area

LED Marker and Tail Lights

Stainless nose skin

Battery package w/ charger tender

2 picture windows
‍

Two tone skins

Steel Wheels

GARAGE AREA

Lined And Insulated Walls And Ceiling W/ White aluminum

3/4” Plywood Floor sprayed w/ vortex Rubber spray lining

14” X 14” Crank Up Roof Vent

Front Nose cabinet

Boot box

Aluminum versa track tie down on floor and on each side of garage

12 Coat Hooks

12” Vortex Kick Plate Full Length Of Interior Walls

Side wall vents each side

Warranty

8-Year Structural
‍
2-Year Hitch-to-Bumper
‍
Limited Lifetime Structural Corrosion Warranty on Galva-Strong Frame
