Stockman | Logan Coach BumperPull & Gooseneck

Stockman

No matter how tough the job, the Stockman helps you get it done. This Stock trailer is available in both bumper-pull and gooseneck models. From cattle trailer to general stock trailer…the Stockman gets the job done better.

LEADING Features



Galvanized Structural Tube frame w/ aluminum exterior



Aluminum whiz proof plank floor w/ permanent suregrip rubber floor (self
draining)



Vortex Rubber spray coated



Triple Wall Construction



7'3" wide standard

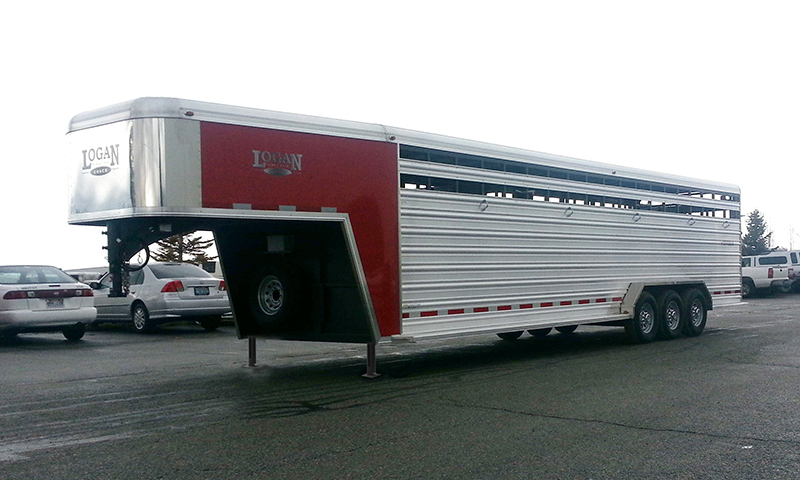

Stockman Gooseneck

Stockman Bumper Pull

Trailer features

Indicates Optional Feature

STRUCTURAL

7' Tall, 7' 3" Wide (7' Wide Inside)

5' Taper Gooseneck Nose

Galvanized Structural Tubing In Walls

One-Piece Aluminum Skin Roof With Aluminum Cove And Roof Bows

8-Year Structural Warranty And 2-Year Hitch To Bumper Warranty

2"x2" Cross Members On 16" Centers

Round Extruded Fenders

Living Quarter Packages Available

6'6"–7'6" Tall

8" Wide

Single Axle

Slant Package

V-Nose

WHEELS, TIRES & AXLES

Torsion Axles

Radial Tires With Radial Spare Tire

Steel Wheels With Center Cap

E-Z Change Tire Jack

Axle and/or Tire Upgrades

Wheel Simulators (Bolt-On For 16" Wheels; Snap-On For 15" Wheels)

Exterior

Aluminum .100 Interlocking Extruded Sides of Stall Area (Attached With 3M VHB Bonding System & mechanical fasters)

Solid Color Side Sheets

Vortex Rubber Coating Under Gooseneck And On Bumper Pull Tongue

Stainless Steel Front Wrap (Gooseneck)

Treadbrite Gravel Guard (Bumper Pull)

Extruded Aluminum Ribbed Running Boards And Fenders

Square boxed style fender is the standard, tear drop style is optional.

Rubber Bumper

E-Z Key System – One Key Fits Every Lock

.100 Formed Aluminum Fender

6' Hay Rack

Aluminum Skin Colors

Black

Black Metallic

Matte Black

Charcoal
Metallic

Dark Grey

Silver Metallic

Tan

White

ELECTRICAL

Extra Flood Lights And/Or Dome Lights

STOCK Area

Corrugated Triple-Wall Construction 48" High With Vortex Rubber Coating

Extruded Aluminum Self-Draining Floor With Vortex Rubber Coating (Whiz Proof) and SureGrip

Slatted Air Space (Plexiglass Ready) (Head And Tail Side)

Combination Rear Gate With Sliding Door And Air Gap With Slam Latch, Cam-Latch or Choice of Double Rear Doors

Solid Center Gate With Slam Latch

Fold-Down Calf Gate (Gooseneck)

Escape Door (Passenger Side)

Stockman 24" and Longer Models Include 2 Center Gates Standard

Plexiglass (Head And Tail Side)

Swing-Out Access Door In Gooseneck

Solid Swing Rear Gate Without Slider

Interior Tie Rings

Kick Wall Padding

Shavings Fork

Slant Package Includes - Slanted Center Gates and/or Slanted Tack Walls

Extra Center Gate

Rolling Multi Position Center Gate

Enclosed Rear Gate Air Slats

Cam-Latch On Rear Gate in lieu of Slam Latch

Sliding GN Vents for Air Flow

Wood Flooring

Cleated Rubber Floor Last 4' of Stall Area

Warranty

8-Year Structural
‍
2-Year Hitch-to-Bumper
‍
Limited Lifetime Structural Corrosion Warranty for Galva-Strong Frame
