Crossfire

The horse trailer with all the basics.  When the "Bells and Whistles" are an after thought and you just need to haul horses, get the strength and quality you need from an Entry Level Logan Coach horse trailer.

LEADING Features
Galvanized Structural Tube Frame w/ Aluminum Exterior
0.30 Aluminum Exterior Bonded w/ 3M Technology
Vortex Rubber Spray Coated
Triple Wall Construction
5 Year Structural Warranty and 1 Year Hitch to Bumper
Crossfire GN
Crossfire Bumper Pull
Crossfire 360 Galleries
Crossfire Gooseneck
Crossfire Bumper Pull
FloorPlans
3 & 4 horse Gooseneck
2 & 3 horse Bumper pull
Trailer features
Indicates Optional Feature
DIMENSIONS & Weight
7’0” Tall – 6’9” Wide

3-Horse GN – 3,960 lbs - Tongue Weight – 920 lbs

4-Horse GN – 4,720 lbs - Tongue Weight – 1,090 lbs

2-Horse BP – 2,540 lbs - Tongue Weight – 380 lbs

3-Horse BP – 2,920 lbs - Tongue Weight – 440 lbs
STRUCTURAL
Galvanized Structural Tubing - Frame Rails, Floor and Wall Uprights

Aluminum Structural Roof Bows

Aluminum Structural Roof Cove
WHEELS, TIRES & AXLES
Torsion Axles

Self-adjusting Brakes

Steel Wheels w/ Center Caps

Radial Tires
3H & 4H GN - 235/80/R16 - E Rated - 10 Ply
2H BP - 225/75/R15 - D Rated 8 Ply
3H BP - 225/75/R15 - D Rated 8 Ply
Exterior
.030 White Smooth Aluminum Wall Sheets

Vortex Rubber Coating on Bumper Pull Tongue

Treadbrite Gravel Guard around Front Wrap

Treadbrite Trim on Bottom of Wall Entire Exterior Length

Rear Rubber Bumper

Exterior Tie Ring - One Each Side Per Stall
ELECTRICAL
Dome Light in Tack Room

LED Marker and Tail Lights

LED Stall Lights
Tack/Dressing Room
33” Wide Tack Door Opening with Pre-fab door

Carpet on Floor

Blanket Bar

Swing-Out Saddle Rack

12 Bridle Hooks

Carpet on Top Half of Bulkhead Wall Behind Bridles

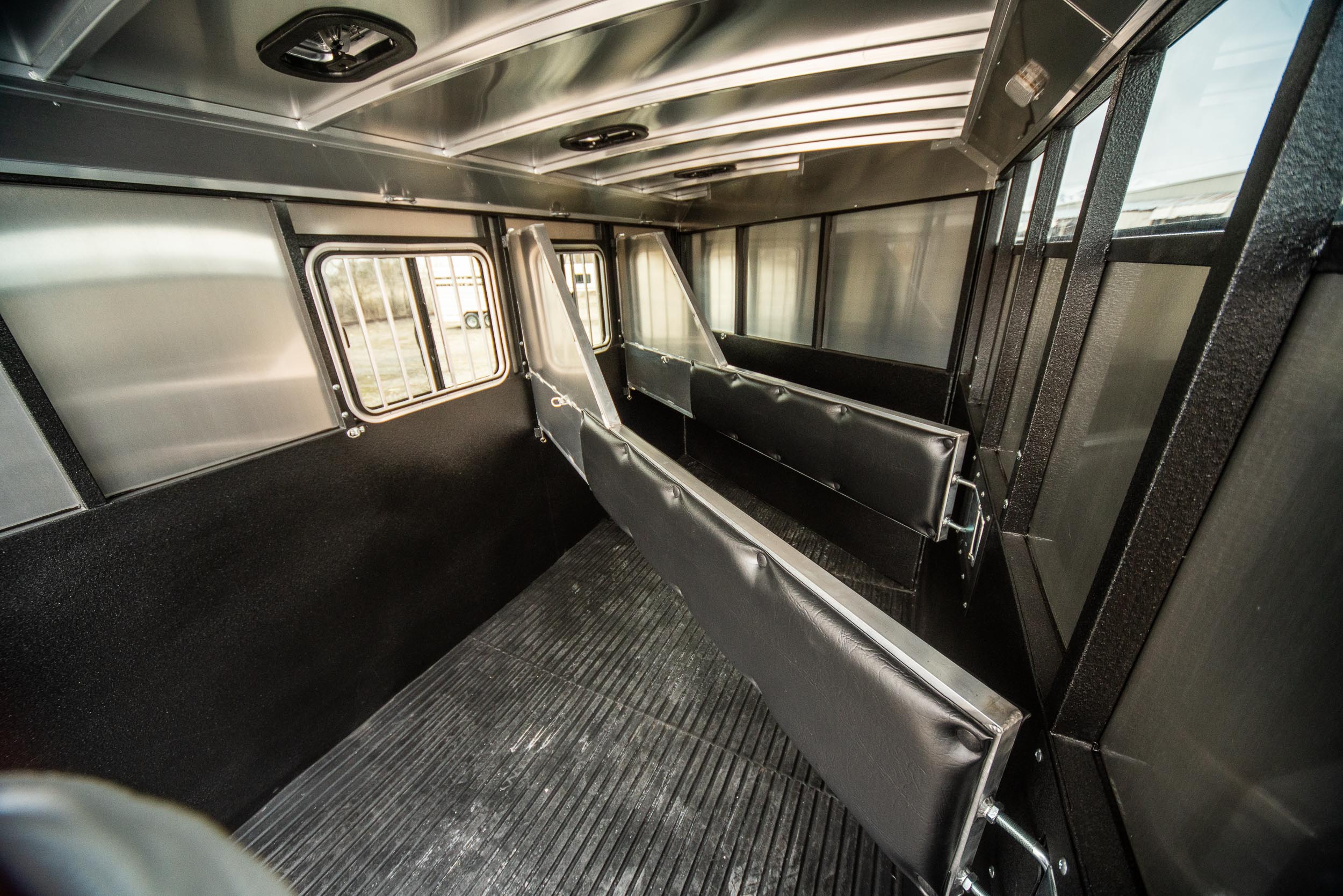

Stall Area
Double Rear Doors w/ Cam Latch

Tailside Air Gap W/ Removable Plexiglass

Pre-fab Drop Down Windows and Grills on Headside of each Stall

Douglas Fir Wood Floor W/ Vortex Rubber Coating

1/2" Rubber Floor Mats

48” High Double Wall Construction with Vortex Rubber Coating

Padded Divider

Pop-Up Vent Each Stall
Warranty
8-Year Structural

2-Year Hitch-to-Bumper

Limited Lifetime Structural Corrosion Warranty for Galva-Strong Frame
